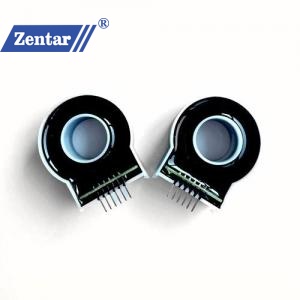

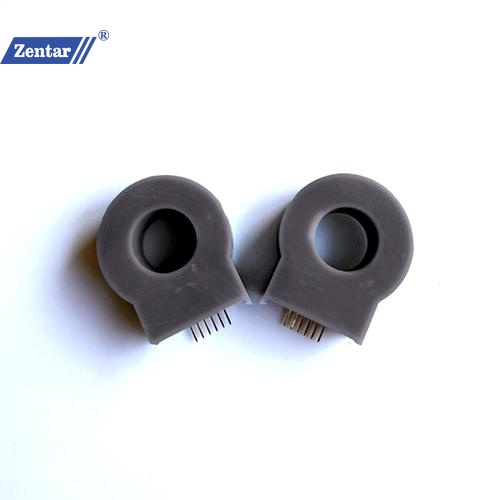

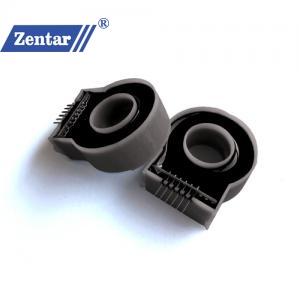

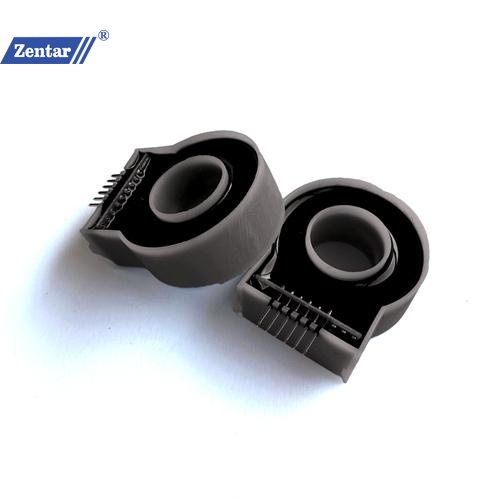

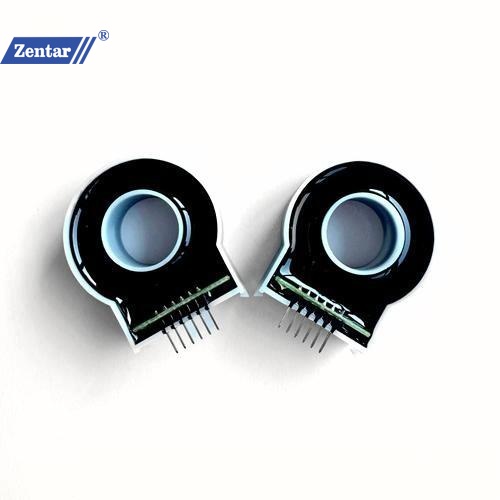

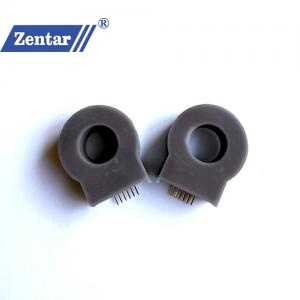

Type B current transformers (CTs) are commonly used in charging piles/guns and energy-saving devices. These CTs are designed to accurately measure the current flowing through a conductor and provide a proportional output signal to an associated monitoring or control device.
Type B CTs are typically used for applications where the primary current is relatively constant, such as in charging piles or guns for electric vehicles, where the current is typically controlled to a set level during charging. Type B CTs have a high level of accuracy over a wide range of frequencies, making them suitable for use in a variety of applications.
Any detected leakage should be addressed promptly to prevent damage to the equipment or potential safety hazards.
Now, Xiamen ZTC Technology Co., Ltd has New Launch Type B CT For The Electrical Safety Module In EV Charging Application.
Behind Every Type B CT Is 20+ Years of R&D in Leakage Detection
Engineered for Safety. Optimized for EV Charging Systems.
Dimensions
ELECTRICAL CHARACTERISTIC
Rated residual operating current1（DC）：6mA DC
Rated residual operating current2（AC）：20mA/30mA AC
Supply Voltage：5V（DC）
operating temperature：-40~105℃
power wastage：110mW
Compliance with IEC 62752, UL2231 is required.
Description Of Pins
Production Process
Implement ISO9001 / 14000 / IATF16949 to meet electrical and electric manufacturing and automobile industry requirement.
Testing
A series incoming and outcoming inspection ensure our products have high quality to meet customers requirement and outcoming pass rate less then 10PPM.
Packing and Shipping
Contact us today to discuss your project!
