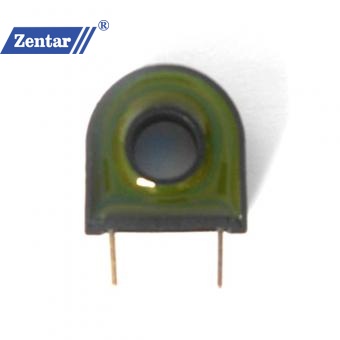

﹡High precision,wide linearity range for output current
﹡Small size and elegant looking
﹡Mount directly to PCB
﹡A variety of configuration and output characteristics
﹡Used for electric metering
200A Split core current transformer CT314
| Rated Primary Current | 50A | ||||
| Saturation current: | ≥560A | ||||
| Rated Secondary Current | 25mA | ||||
| Accuracy | 1.0 | ||||
| Electrical Strength | 3000VAC 1mA60s | ||||
| Load Resistance | 10Ω | ||||
| DC Resistance at 20℃ | 60±6Ω | ||||
| Linearity | 3%（50A-560A） |
|
Model No. |
Rated Input Current |
Rated Output |
Accuracy |
Dimension(Unit: mm/inch) |
|||||
|
Ф |
A |
B |
C |
D |
E |
||||
|
CT301 |
5-85A |
0-50mA |
0.5%~3% |
10 |
27.0 |
25.0 |
42.5 |
To be defined |
To be defined |
|
0.394 |
1.063 |
0.984 |
1.673 |
||||||
|
CT302 |
10-300A （10、50、100、200、250、300） |
0-200mA |
0.5%~3% |
24 |
46.0 |
34.0 |
66.0 |
||
|
0.945 |
1.811 |
1.339 |
2.598 |
||||||
|
CT303 |
5-180A |
0-100mA |
0.5%~3% |
16 |
33.0 |
31.5 |
43.5 |
||
|
0.630 |
1.299 |
1.240 |
1.713 |
||||||
|
CT304 |
5-30A |
0-30mA |
0.5%~3% |
6 |
26.4 |
16.0 |
32.0 |
||
|
0.236 |
1.039 |
0.630 |
1.260 |
||||||
|
CT305 |
10-630A（20、100、250、300、400、630） |
0-500mA |
0.5%~3% |
36 |
58.0 |
40.5 |
84.8 |
||
|
1.417 |
2.283 |
1.594 |
3.339 |
||||||
|
CT312 |
5-85A |
0-50mA |
0.5%~3% |
10 |
23.5 |
26.2 |
42.0 |
||
|
0.394 |
0.925 |
1.031 |
1.654 |
||||||
|
CT313 |
10-200A （10、50、100、200） |
0-200mA |
0.5%~3% |
16 |
30.5 |
31.0 |
45.2 |
||
|
0.630 |
1.201 |
1.220 |
1.780 |
||||||
|
CT314 |
10-300A （10、50、100、200、250、300） |
0-200mA |
0.5%~3% |
24 |
45.0 |
33.8 |
64.7 |
||
|
0.945 |
1.772 |
1.331 |
2.547 |
||||||
|
CT315 |
10-1000A（20 、100、250、300、400、630 800 1000） |
0-500mA |
0.5%~3% |
36 |
58.0 |
40.5 |
84.0 |
||
|
1.417 |
2.283 |
1.594 |
3.307 |
||||||
Applications
Split core current transformer design or split core current sensor is used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.
ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. They are ideal for distributed measurement systems and can be retro-fitted into existing installations and non-interruptible equipment as there is no requirement for disconnection and reconnection of wiring.
Distribution Cabinet
We provide customized service and expertise in consulting, design and manufacturing of current transformers, RCD fused connection unit and wireless energy monitor.
