clamp type with screw design current transformer

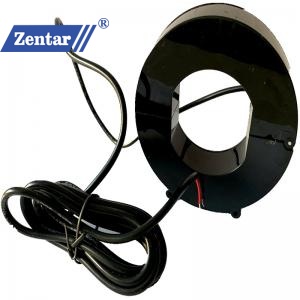

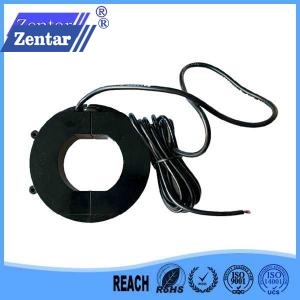

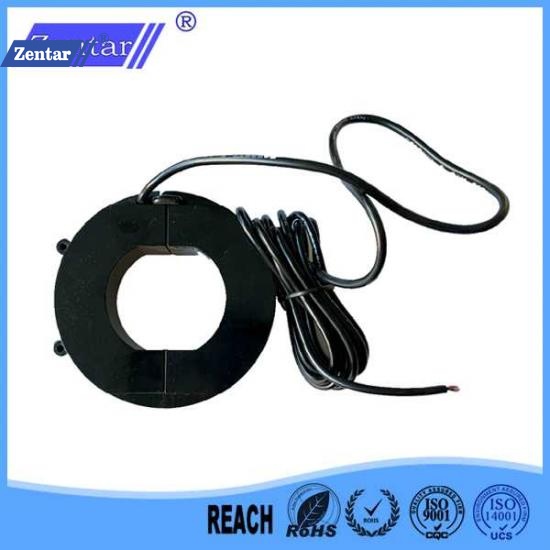

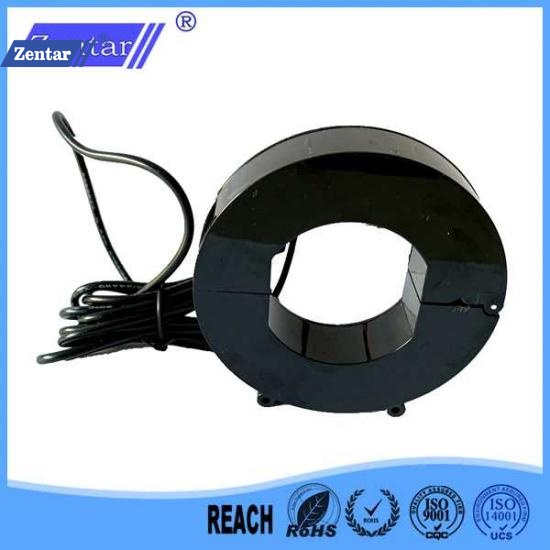

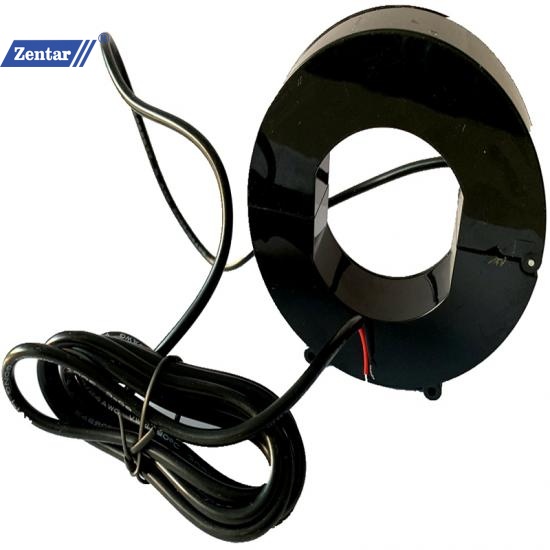

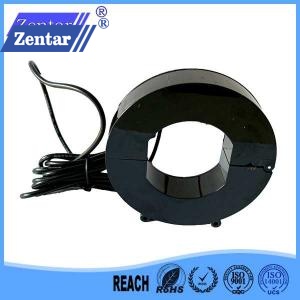

Clamp type current transformer CT332

ID 45mm Clamp type current transformer with screw design

Steady in phase shift over the whole range
Small in size,clamp type,easy to use no need of cutting cable
Various of configuration and output characteristics
RoHS compliant, CE,ETL Certificate

INQUIRE Now

Product Categories

Hot Products

Product Detail

Clamp type current transformer CT332

Split core current transformer design is used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.

ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. They are ideal for distributed measurement systems and can be retro-fitted into existing installations and non-interruptible equipment as there is no requirement for disconnection and re-connection of wiring.

Frequency band :

50Hz~60Hz

Dielectric strength:

2500Vrms/2 seconds between sec. / outside

Rated current:

300A 50Hz/60Hz

Max current:

480A 50Hz/60Hz

Rated load resistor:

10Ω

Saturation current:

>480A 50Hz/60Hz

Rated secondary current

100mA 50Hz/60Hz

Inductance

≥15H (@50HZ,1V)

Linearity error

1%(5-480A)

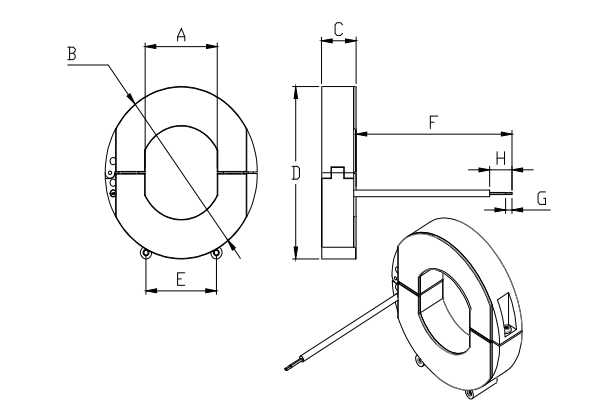

Model No.	Rated Input Current (A)	Rated Output	Accuracy	Dimension(Unit: mm/inch)

				Ф	A	B	C	D	E
CT301	5-85A (5、10、50、60、75）	0-50mA or 0.333V	0.5%~3%	10	27.0	25.0	42.5	To be defined	To be defined
				0.394	1.063	0.984	1.673
CT302	10-300A （10、50、100、200、250、300）	0-200mA or 1A/5A	0.5%~3%	24	46.0	34.0	66.0
				0.945	1.811	1.339	2.598
CT303	5-180A （10、50、100、120、150）	0-100mA or 1A	0.5%~3%	16	33.0	31.5	43.5
				0.630	1.299	1.240	1.713
CT304	5-30A （5、10、15、20、30）	0-30mA or 0.333V	0.5%~3%	6	26.4	16.0	32.0
				0.236	1.039	0.630	1.260
CT305	10-630A（20、100、250、300、400、630）	0-500mA or 1A/5A	0.5%~3%	36	58.0	40.5	84.8
				1.417	2.283	1.594	3.339
CT312	5-85A (5、10、50、60、75）	0-50mA or 0.333V	0.5%~3%	10	23.5	26.2	42.0
				0.394	0.925	1.031	1.654
CT313	10-200A （10、50、100、200）	0-200mA or 1A	0.5%~3%	16	30.5	31.0	45.2
				0.630	1.201	1.220	1.780
CT314	10-300A （10、50、100、200、250、300）	0-200mA or 1A/5A	0.5%~3%	24	45.0	33.8	64.7
				0.945	1.772	1.331	2.547
CT315	10-1000A（20 、100、250、300、400、630 800 1000）	0-500mA or 1A/5A	0.5%~3%	36	58.0	40.5	84.0
				1.417	2.283	1.594	3.307

Distribution Cabinet

We provide customized service and expertise in consulting, design and manufacturing of current transformers, RCD fused connection unit and wireless energy monitor.
