Widely used on Zero phase Current Transformer and GFCI current transformer
Magnetic properties
Initial Permeability:80000 (Gs/Oe) min / Density：8.75 (g/cm3)
Maximum Permeability:400000 (Gs/Oe) / Curie Temperature：400 (℃)
Saturated Induction density:0.75 (T) / Saturated Magnetostrictive Coefficient ：0.0005
Resistivity：0.56 (μΩ*m) / Coercive Force:<0.006 (Oe)

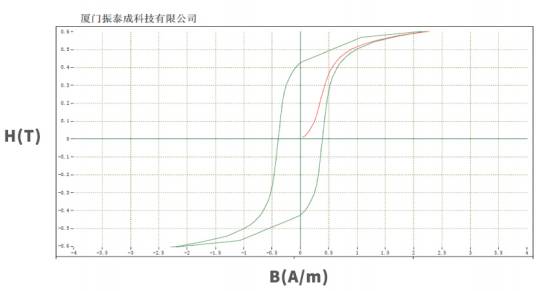

Magnetic characteristics curve
Core Drawing
Testing Data
Production Process
Implement ISO9001 / 14000 / IATF16949 to meet electrical and electric manufacturing and automobile industry requirement.
Testing
A series incoming and outcoming inspection ensure our products have high quality to meet customers requirement and outcoming pass rate less then 10PPM.
Packing and Shipping

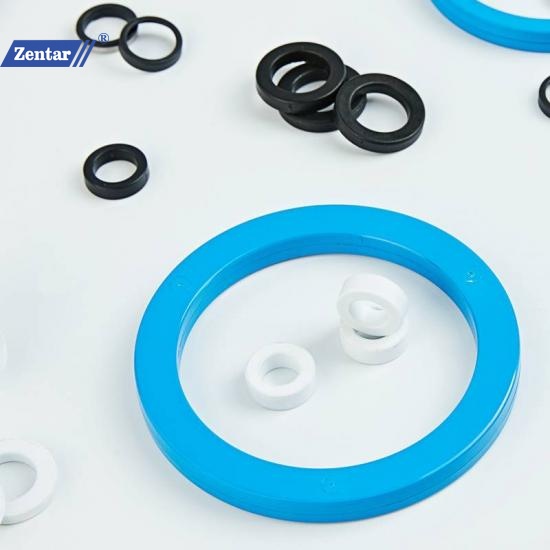

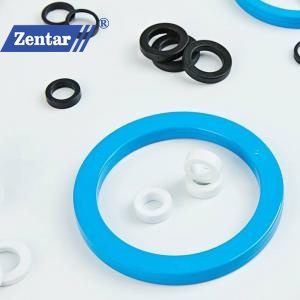

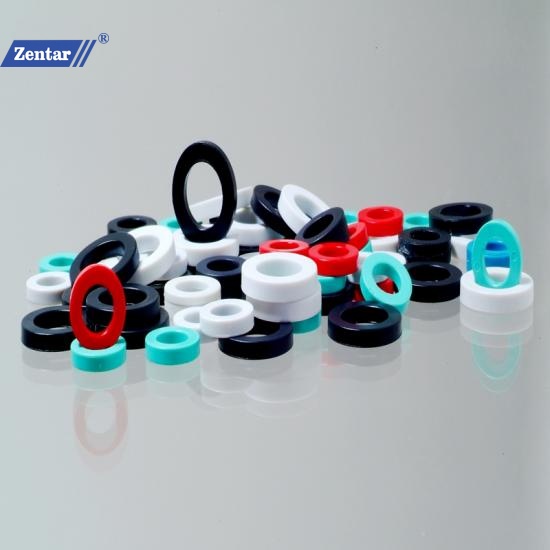

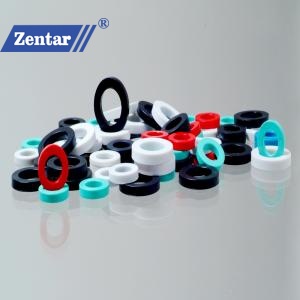

We are specialized in permalloy / Nickel Alloy ring cores for current transformers, providing customized service and expertise in consulting, design and manufacturing.
Contact us today to discuss your project!
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
ID 10mmclamp ct transformer Steady in phase shift over the whole range Small in size, clamp type,easy to use no need of cutting cable Various of configuration and output characteristics RoHS compliant, CE,ETL Certificate
Small size, high accuracy and good consistency Excellent in linearity Using high conductivity permalloy or noncrystalline PCB welding and epoxy resin potting Widely used for high accuracy instruments, transmitters, energy monitors
High sensitivity and close to zero load shift Excellent characteristics in temperature and balance Small change of output voltage after large DC impulse A variety of configuration and output characteristics Used for leakage current detection
