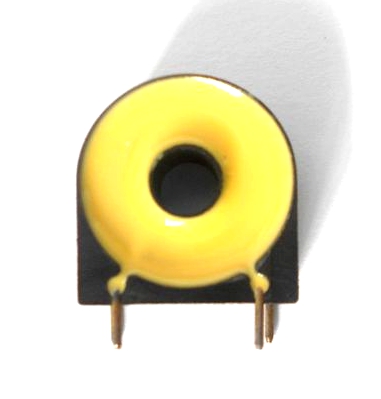

ZTC precision current transformer PCT701

Understanding the differences between linearity error and accuracy error is crucial for ensuring precise and reliable current measurements. By considering the specific needs of your application, such as waveform distortion, measurement range, and budget, you can make an informed decision about the appropriate current transformer for your needs. Accurate current measurement is essential for applications ranging from metering and relaying to power quality monitoring, making the choice of CT a critical aspect of electrical system design.

Choosing the right current transformer (CT) for your application is crucial for ensuring precise and reliable current measurements. Two key factors to consider are linearity error and accuracy error. While they are related, these errors have distinct implications for CT performance. Let’s delve into the differences between linearity error and accuracy error in current transformers.

Linearity Error

Definition: Linearity error refers to the deviation between the measured curve and the ideal straight line.

Explanation: When a current transformer operates, its output signal may not perfectly follow a linear relationship with the input current. In other words, the actual response curve might deviate from the ideal straight line.

Quantification: Linearity error is typically expressed as a percentage relative to the maximum value. It represents the maximum difference between the measured points and the linear regression line.

Factors: Factors contributing to linearity error include magnetic saturation, hysteresis, and other non-ideal characteristics of the transformer.

Importance: Linearity is crucial for accurate measurements, especially when the current varies across a wide range.

Accuracy Error

Definition: Accuracy refers to the maximum difference that exists between the actual value and the indicated value at the output of the sensor (in this case, the current transformer).

Influencing Factors: Accuracy is affected by various factors, such as temperature changes, humidity variations, power supply fluctuations, and frequency changes.

Basic Error Limit: Accuracy is determined by the sensor’s basic error limit, which represents the inherent precision of the measurement device.

Overall Performance: Achieving high accuracy ensures reliable and consistent measurements, even under varying conditions.

Key Differences

Implications for CT Selection

Both linearity error and accuracy error are important factors to consider when choosing a current transformer (CT). Here's how they impact CT selection:

Waveform Distortion: If the current waveform is expected to be distorted, a CT with low linearity error is crucial to minimize measurement errors.

Measurement Range: The required measurement range will influence the CT's accuracy requirements. For example, a wider measurement range may necessitate a higher accuracy class.

Cost: CTs with lower linearity error and higher accuracy class typically come at a higher cost.

Specific Application Needs: The choice between linearity error and accuracy error depends on the specific application. If high accuracy is crucial, especially at high current levels, a CT with low linearity error is essential. However, if the application requires only moderate accuracy and cost is a significant factor, a CT with higher linearity error but lower accuracy class may be sufficient.

By focusing on these factors, you can ensure that you select the most suitable current transformer, optimizing performance and reliability in your specific application.
